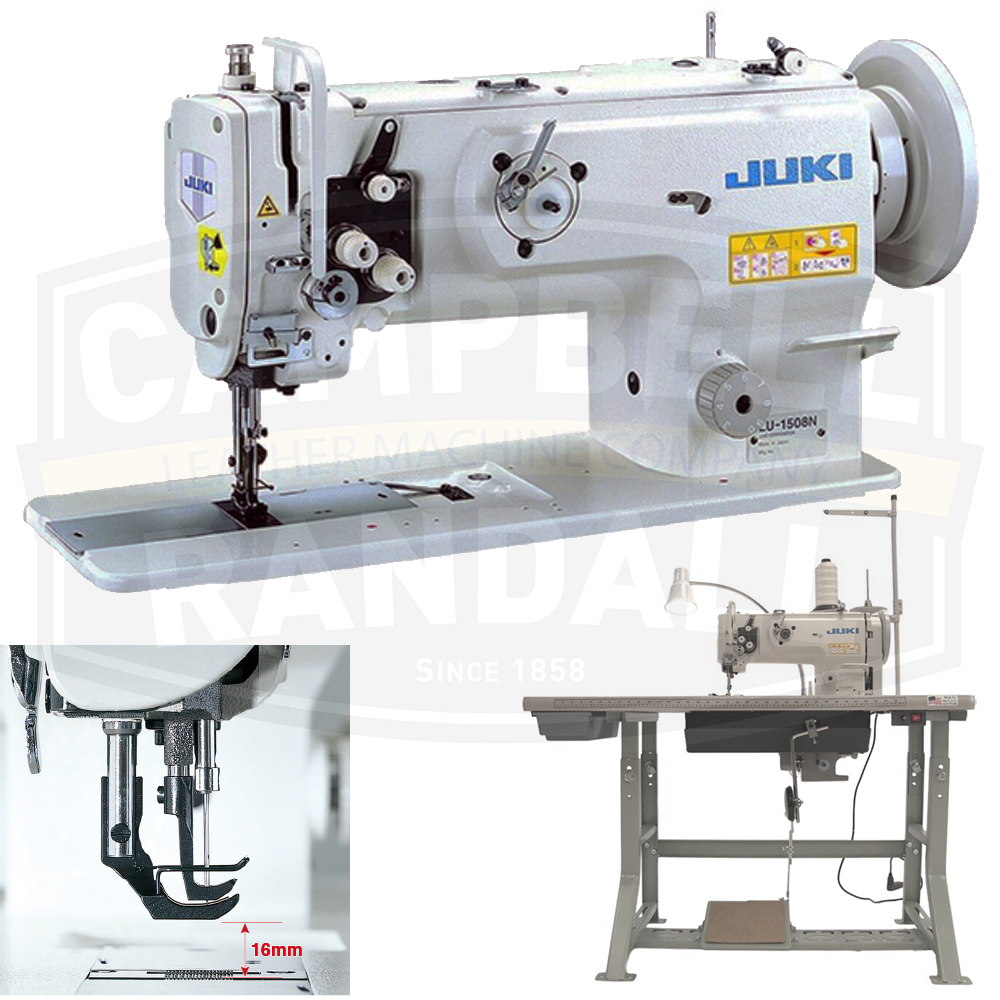

Model JUKI LU-1508NH

1-needle, Walking Foot (Unison-feed), Lockstitch Machine For Extra Heavyweight Materials

  • Large Vertical-Axis Large Hook with Large bobbin (U Type) for greater production with fewer interruptions
  • Built-in safety clutch prevents hook damage
  • Automatic lubrication with centralized oil wick
  • Arm shaft and hook shaft are supported by ball bearings
  • Timing belt driven
  • High presser foot lift
  • Built-in bobbin winder
  • For sewing medium & heavy materials such as canvas, leather, vinyl, synthetics
  • Unison feed assures even feed when sewing multiple layers
  • Built-in safety clutch system prevents hook damage
  • Extra large hand wheel increases torque. A Belt Guard is also Included (Not shown in Picture)
  • Maximum Sewing Speed: 2000 spm*
  • Stitch Length Adjustment:0 to 10mm
  • Presser Foot Lift By Hand: 9mm
  • By Knee: 16mm
  • Needle System: 190R
  • Needle Bar Stroke: 38mm
  • Feed Type: Unison feed
  • Hook Type: Large vertical rotary hook
  • Amount of Alternating Presser Foot Lift: 2.5 to 6.5mm (3.7mm standard)
  • Working Space: 255mm (10″)
  • Uses Singer 111W style walking feet
